Husqvarna Throttle Link Problem

[sawman39]

On a side note i cannot remember the carb being held on with studs and nuts, is this some type of mod? also the clear fuel hose was never standard.

Your quite correct, some other "saw mechanic" decided to ring off the threads on the manifold so instead of buying a new one i replaced them with bolts in from the back, much stronger job I reckon. Yes the fuel hose was also replaced is it was torn at the entrance to the tank.

[adw]

are you sure this is a 55? there is somthing strange about about the filter plate, the extention here was for the machine that had no choke, the filter was pushed onto the end of the extention by an external thumb lever to create an over rich mixture to start.

[sawman39]

are you sure this is a 55? there is somthing strange about about the filter plate, the extention here was for the machine that had no choke, the filter was pushed onto the end of the extention by an external thumb lever to create an over rich mixture to start.

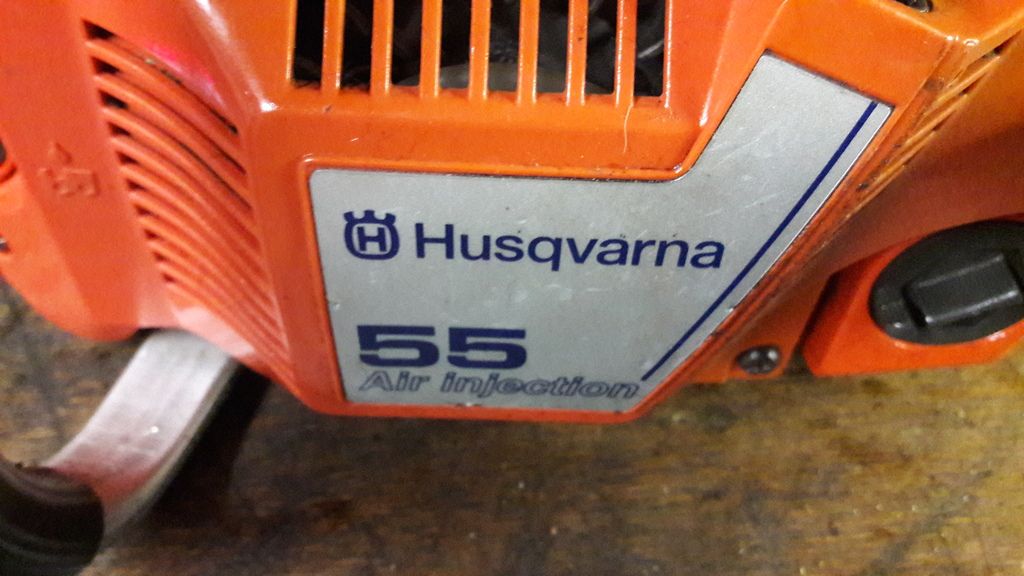

This is the side casing http://i347.photobucket.com/albums/p452/richard_harris15/20170215_192323_zpsgs8c6p0i.jpg



However I can see where you are coming from, I dont know the saws full history an I am beginning to thinks its a bitsa.....

[adw]

Here are both types of plates

[sawman39]

Here are both types of plates

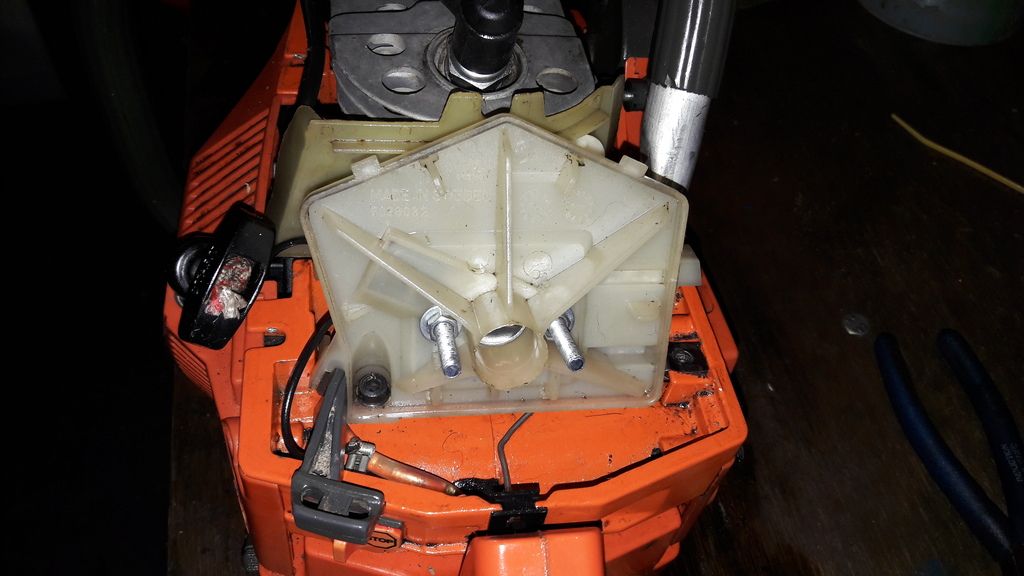

Mine seems to be like the bottom one.... see here: http://i347.photobucket.com/albums/p452/richard_harris15/20170215_214831_zpsoqmh2ucj.jpg

[adw]

Ok, back to where you have located the throttle wire in the throttle spindle.

[sawman39]

Ok, back to where you have located the throttle wire in the throttle spindle.

This is what I bought and installed, I slid the little black cap on one end and the hooked the other end onto the carb



Throttle linkage rod for Husqvarna 50, 51, 55 chainsaws,new, 501 77 80-02 | eBay

[adw]

Did you put the end of the wire into the small hole in the throttle spindle???????

[sawman39]

Did you put the end of the wire into the small hole in the throttle spindle???????



yes done that!

[htb]

yes done that!



Go back to post 6.
