Double drum winches and high lead.

[Capstankid!]

Has any one got any photos of double drum winches being used for high lead or any pearls of wisdom on high lead systems?



I know someone will say why don't you skyline it and it's because the site is only 200m wide. You could put it diagonal but it would just make more hassle.



It's going to make expensive timber.



Sent from my SM-G930F using Arbtalk mobile app

[Wood wasp]

Height



Good spar to give height and tower at tractor end. What winch are you thinking of using?



Old Jones leaflet here courtesy of Forestry-Memories.org.uk



http://www.forestry-memories.org.uk/pictures/document/1193.pdf

Edited November 14, 2016 by Wood wasp

[openspaceman]

Height



Good spar to give height and tower at tractor end. What winch are you thinking of using?



Old Jones leaflet here courtesy of Forestry-Memories.org.uk



http://www.forestry-memories.org.uk/pictures/document/1193.pdf



That takes me back to those early APF shows where Jones would have a skyline running and Highland bears forwarding the produce back to the end.



I briefly worked on a Igland skyline near Port Talbot in the late 70s and found it one of the most strenuous and frustrating jobs. The boss's wife ran the tower . Here is a picture of my mate putting up an intermediate support, note the Goliath boots and full safety gear:001_smile:





However I did buy the double pulley and snatch block to extract when felling a carr, I never did become competent with the control and had lots more frustration unwinding the block when it got tangled.



I cannot remember being able to use it downhill which would probably suited better.



Working on SSSIs and ancient woodland I thought it would be the way to go because of the lower ground damage but by 1984 I had given up and gone the shortwood route with a tractor mounted grapple.

[Capstankid!]

Height



Good spar to give height and tower at tractor end. What winch are you thinking of using?



Old Jones leaflet here courtesy of Forestry-Memories.org.uk



http://www.forestry-memories.org.uk/pictures/document/1193.pdf

Thanks for the replys.



I have an old Fransgard 3500, which is only 3.5 tonne but I am looking into a bigger winch for more pull and more cable.



I am going to have a play around with it in the next couple of weeks and see what it's capable of doing. I will put some photos up.

[IRE David H]

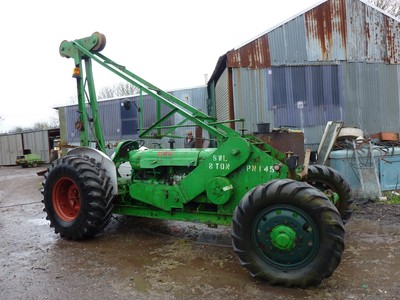

double drum winch tractor. aka fordson major and automower wicnh

[Wood wasp]

I think you may struggle with the fransguard due to amount of cable the drums can hold combined with lever arrangement

[Capstankid!]

I seen one of those ford's on majors on eBay the other month.



It's got 150m of cable on it now and it could probably hold a bit more but not massive amounts.

It's just had a full rebuild of new clutch and chains.



Sent from my SM-G930F using Arbtalk mobile app

[Henderson53]

Look at the Maxwald small cable system, seen it working at the KWF in Bavaria this year, ok for SSSI sites and sensitive areas, simple inexpensive system.

Lots of them around now. Seen a few old Alp systems on ebay, which work well, old, but cheap and effective.

[timberonabike]

Chris from MWMAC had a setup running at APF this year, mostly a selection of stuff he found in his shed and from ebay. He used a separate a-frame rather than a vehicle mounted tower.

[Brushcutter]

Chris from MWMAC had a setup running at APF this year, mostly a selection of stuff he found in his shed and from ebay. He used a separate a-frame rather than a vehicle mounted tower.



Yes that was a very good system, spent a long time talking to Chris about it.
